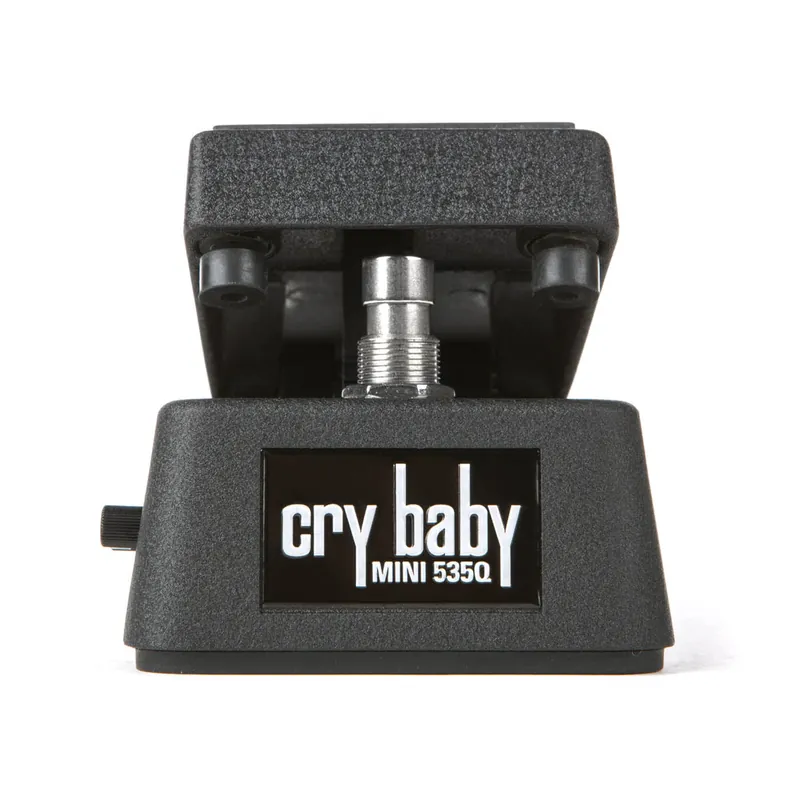

Fresh Stock Dunlop – Cry Baby Mini 535Q Wah

At half the size of a standard wah, the Cry Baby Mini 535Q Wah provides the perfect balance of wah control and pedalboard-efficiency.

The Cry Baby Mini 535Q Wah comes in at half the size of the standard version, and on the inside, it sports the legendary red Fasel® Inductor. If you want to save space while retaining ultimate control over your Cry Baby Wah sound, this pedal belongs on your pedalboard.

SPECIFICATIONS
Input Impedance 1MΩ
Output Impedance ~1.5K Ohm
*A-weighted, **Q control at maximum clockwise, boost off
IMPEDANCE
Heel Down 90 dBV
Toe Down 97 dBV
SIGNAL TO NOISE RATIO*
Range Selector Switch Position (1 towards heel, 4 towards toe)
1st Position 270Hz—1300Hz
2nd Position 320Hz—1650Hz
3rd Position 360Hz—1840Hz
4th Position 420Hz—2100Hz
WAH RANGE SELECTOR
Filter Gain** 15 dB
Boost Control Range 0.1 dB to 17 dB
Bypass True Hardwire
Current Draw 2.5 mA
Power Supply DC 9 volts
