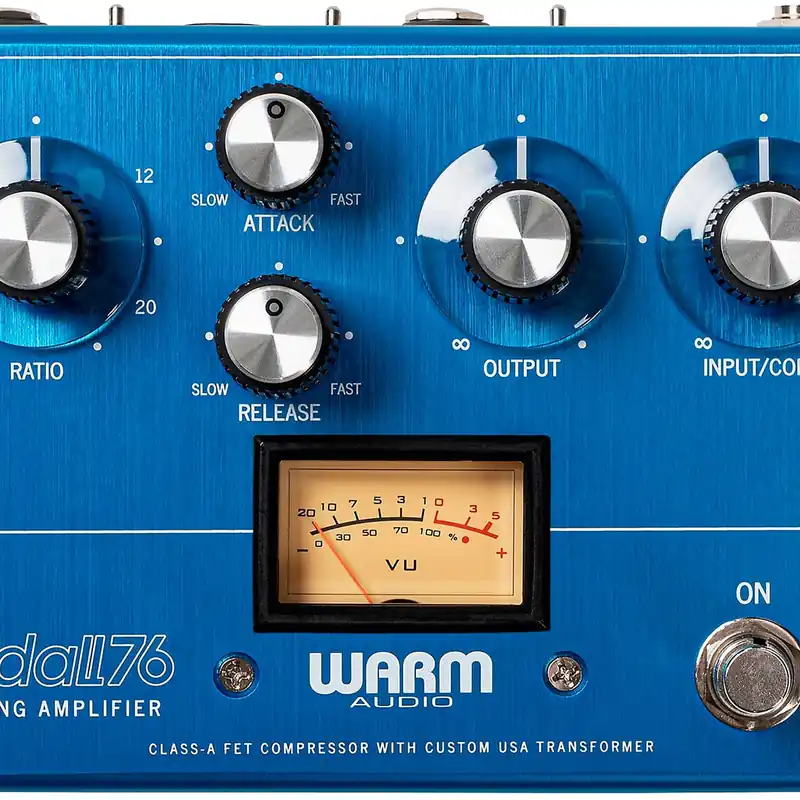

Limited Edition Warm Audio – Pedal76 – All-Analog Transformer-Balanced FET Compressor Pedal – Limited Edition Blue – WA-76PB

Recreating Legendary Studio Compression for Your Pedalboard

Classic Studio Compression Recreated for Your Pedalboard:

– Pedal76 accurately reproduces one of the fastest and most powerful studio compressors of all time, known for having ultra-fast attack and release and adding sweet analog tone to any source. Just like in the studio, Pedal76 has Attack & Release, Ratio, and Input controls, critical for taming unwanted changes in volume on stage. Backed by over 10 years of expertise delivering premium, award-winning studio compression with the Warm Audio WA76, the Pedal76 is capable of bringing out the wide range of legendary compression tones from subtle to hard-limiting as favored by celebrated artists such as Led Zeppelin, Pink Floyd, Periphery, Jack White and many more.

Studio-Quality Sound, Stage-Ready Control:

– To achieve authentic 76-style FET compression, Pedal76 is built with an all-analog circuit and premium components, including a custom CineMag USA transformer. Spec’d to duplicate the professional performance of the studio units, this transformer adds rich harmonic content, and, in high-gain mode, a bit of audible overdrive reminiscent of the most prized studio originals. Pedal76 features gig-ready controls like an external switch for true/buffered bypass, ensuring the compressor plays nice in your rig. Switches for input sensitivity, ground/lift, pad and high/low gain modes (both for DI operation) provide added utility at gigs or in the studio. The separate (DI) out also sends a balanced signal to any mixer or live recording rig.

Applications:

– Electric Guitar | Squishy Funk & Chicken Pickin’: Smash any light playing and make transients stick out without losing low end
– Electric Guitar | Lead & Solo Sustain: Add sustain to bends and lead tones for epic solos that sit on top of the mix
– Electric Bass | Big Studio Bass: Add growl and grit, shape slaps and transients, and deliver studio bass tone on any stage
– Electric Guitar | Pristine Drive & Rhythm Tone: Level out arpeggios and add clarity to picked notes and rhythm guitar, whether clean or driven

Components:

Custom Cinemag USA Transformer
– The custom CineMag USA transformer is spec’d to duplicate the professional performance and tone of studio units in a pedalboard-friendly format. CineMag owns all of the original datasheets & specs from Reichenbach Engineering, the company that built the original transformers in the vintage 1176 studio compressors.

Premium Circuitry, Fit & Finish
– Pedal76 has a custom enclosure with accurately tapered, studio-grade knobs and switches. The circuit is loaded with premium capacitors, resistors, and transistors rounding out a pedal that cuts no corners in delivering an authentic studio compression experience on stage.

Hand-Tested & Inspected in Austin, TX, USA
– Every single Pedal76 is meticulously hand-inspected and calibrated at Warm HQ in Austin, TX by real musicians and engineers with a passion for superior sound.

Technical Specifications:

Product Description & External Specs

– All-Analog Transformer-Balanced FET Compressor Pedal
– Classic 76-Style Compression Controls: Ratio | Attack | Release | Output | Input
– Additional Controls: Input Sensitivity | Ground/Lift | DI Output Pad | DI High/Low Gain with Level Boost on Balanced Output
– External True or Buffered Bypass Switch
– Vintage-Style Amber VU Meter for Gain-Reduction Indication
– External Power Supply with 9-V Battery Compartment (External Power Supply Leverages Internal Voltage Increase via DC-DC Voltage Converter)
– Dimensions: 5.9″ x 4.1″ x 1.9″ | Weight: 1.65 lb
– 5-Year Warranty

Components & Internal Specs

– Custom CineMag USA Output Transformer (Engaged with External Power)
– Ultra-Low Noise with 100% Discrete Analog Signal Path
– When Using External Power, Pedal76 Requires 125 mA
