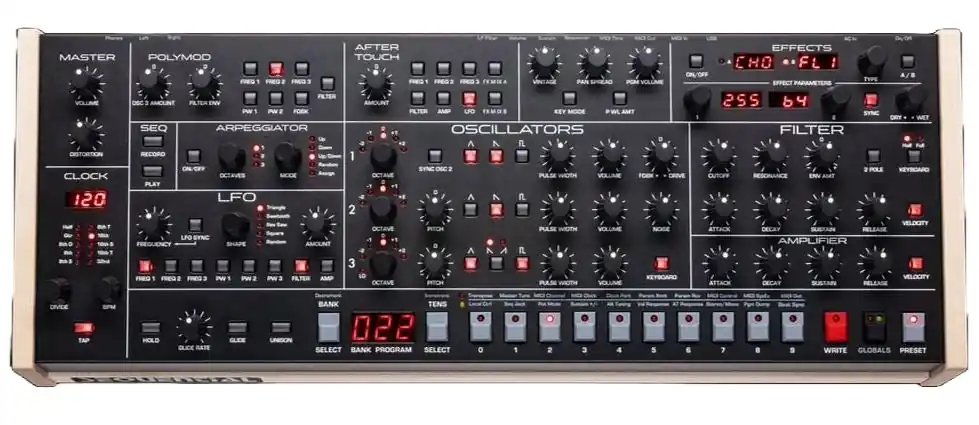

Sequential – Trigon-6 Desktop Module Limited Edition

3-VCO Enhanced Ladder Filter Analog Poly Synth:

– Experience the Power of 3 Oscillators and a Ladder Filter with the Trigon-6 Module

– A Sound That Is Bold and Familiar

– All-New Filter and Oscillator Design

– Rounding Out the Picture

– More Power Features

– Dual Effects

– Adjustable Vintage Character

– More Than the Sum of Its Parts

– Portable and Powerful

Oscillators:

– 3 Discrete VCOs Per Voice

– Simultaneously Selectable Wave Shapes: Triangle, Sawtooth, Reverse Sawtooth, and Variable-Width Pulse

– Pulse Width Per Oscillator

– Hard Sync: Oscillator 1 Syncs to Oscillator 2

– Keyboard Tracking On/Off (Oscillator 3)

– Low-Frequency Mode (Oscillator 3)

– Oscillator Feedback and Drive Controls for Increased Signal Saturation

– White Noise Source

Low-Pass Filter:

– Switchable 2/4-Pole, Discrete, Resonant, Low-Pass, Ladder Filter Per Voice

– Filter Can Be Driven Into Self-Oscillation with the Resonance Control

– Bi-Polar Filter Envelope Amount

– Velocity Modulation of Envelope Amount

– Keyboard Tracking: Off, Half, Full

Filter Envelope:

– 4-Stage (ADSR) Envelope Generator

– Velocity Modulation of Envelope Amount

Amplifier Envelope:

– 4-Stage (ADSR) Envelope Generator

– Velocity Modulation of Envelope Amount

Low-Frequency Oscillator:

– 5 Wave Shapes: Sine, Sawtooth, Reverse Sawtooth, Square, and Random (Sample and Hold)

– LFO Sync

– Initial Amount

– Mod Destinations: Oscillator 1 Frequency, Oscillator 2 Frequency, Oscillator 3 Frequency, Oscillator 1 Pulse Width, Oscillator 2 Pulse Width, Oscillator 3 Pulse Width, Filter Cutoff, Amp (VCA)

Poly Mod:

– Sources: Oscillator 3 (Bi-Polar) and Filter Envelope (Bi-Polar)

– Destinations: Oscillator 1 Frequency, Oscillator 2 Frequency, Oscillator 3 Frequency, Oscillator 1 Pulse Width, Oscillator 2 Pulse Width, Filter Cutoff, Feedback Amount

Vintage Knob:

– Recreates Vintage Synth Characteristics by Adding Voice-to-Voice Variations in Component Behavior

Aftertouch:

– Source: Channel (Mono) Aftertouch with Bi-Polar Amount

– Destinations: Oscillator 1 Frequency, Oscillator 2 Frequency, Oscillator 3 Frequency, LFO Amount, Amplifier Envelope Amount, Filter Envelope Amount, FX Mix A, FX Mix B

Clock:

– Master Clock with Tap Tempo

– BPM Control and Display

– MIDI Clock Sync

Arpeggiator:

– Selectable Note Value: 16th Note, 8th Note Triplet, 8th Note, Dotted 8th Note, Quarter Note

– 1-, 2- or 3-Octave Range

– Up, Down, Up/Down, Random, and Assign Modes

Sequencer:

– Polyphonic Step Sequencer with Up to 64 Steps and Rests

Effects:

– Stereo Analog Distortion

– Dual, 24-Bit, 48-kHz Digital Effects, Including: Reverb (Room, Hall, Plate, Spring), Delay (Full-Bandwidth Digital Delay and Emulated Bucket Brigade), Chorus, Flanger, Phase Shifter, and Ring Modulator

– Delay Sync

– True Bypass Maintains Fully Analog Signal Path When Digital Effects Are Off

Performance Controls:

– Hold Switch Latches Held Notes On

– Polyphonic Portamento

– Unison (Monophonic) Mode with Configurable Voice Count, from 1 to All 6 Voices, Chord Memory, and Key Modes

– Preset Switch: When On, the Front Panel Is Live — What You See Is What You Hear

Patch Memory:

– 500 User and 500 Factory Programs in 10 Banks of 100 Programs Each

– Direct Program Access, Including Single-Button Access to the Current Set of 10 Programs

In/Out:

– Left/Mono and Right Audio Outputs (2 x 1/4″ Phone Jack)

– Headphone Output (Stereo, 1/4″ Phone Jack)

– MIDI In, Out, and Thru Ports

– USB for Bi-Directional MIDI Communication

– Filter Cutoff Expression Pedal Input

– Volume Expression Pedal Input

– Sustain Footswitch Input

– Sequencer Start/Stop Footswitch Input

Power:

– IEC AC Power Inlet for Internal Power Supply

– Operates Worldwide on Voltages Between 100 and 240 Volts at 50 to 60 Hz; 30 Watts Maximum Power Consumption

Physical:

– Dimensions (L x W x H): 22.00″ x 8.45″ x 4.54″ | 55.88 cm x 21.46 cm x 11.53 cm

– 10.9 lb | 4.95 kg

– Maple End Panels
