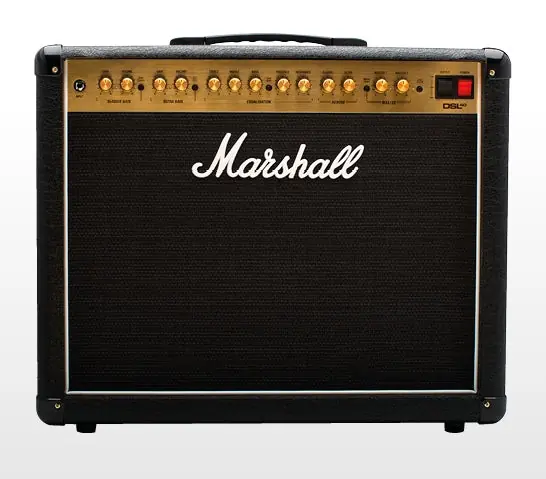

Today Only Marshall – DSL40CR 40W Combo

TECHNICAL SPECIFICATION
GENERAL
Model
DSL40
Range
DSL
Technology
Valve
Channels
2 (Split) “Ultra gain” and “classic gain”
ELECTRONICS
Output wattage
40w (with power reduction option to 20w)
Outputs
Speaker outputs: 5 x 1/4″ jack sockets (16Ω load / 8Ω load / 4Ω load), 1 x 1/4″ jack emulated line out
Inputs
1 x 1/4″ instrument jack, 1 x 3.5mm jack Aux in MIDI in, footswitch
Controls
Classic gain channel (gain, volume, clean crunch switch), ultra gain channel (gain, volume, OD1/OD2 switch), treble, middle, bass, tone shift switch, presence, resonance, reverb (classic gain channel), reverb (ultra gain channel), master select switch, master volume I, master volume II, loop on/off switch, low power option (on rear)
Effects
Digital reverb
Effects loop
Yes, series, send/return
SPEAKERS
Speaker configuration
1×12″
Speaker model
Celestion V-Type speaker (16Ω, 80w)
Unit impedance
16Ω
VALVES
Preamp valves
4 x ECC83
Power amp valves
2 x EL34
ACCESSORIES
Footswitch
PEDL-90012 included. Compatible with PEDL-91016 modes include: 1 – Clean (classic green) 2 – Crunch (classic red) 3 – OD1 (ultra green) 4 – OD2 (ultra red) 5 – Master 1/Master 2 (toggle) 6 – FX Loop on/off
Cable
Detachable power cable included

DIMENSIONS (INCLUDING FEET AND HANDLE)
Width
620 mm / 24.4″
Height
490 mm / 19.3″
Depth
252 mm / 9.9″
